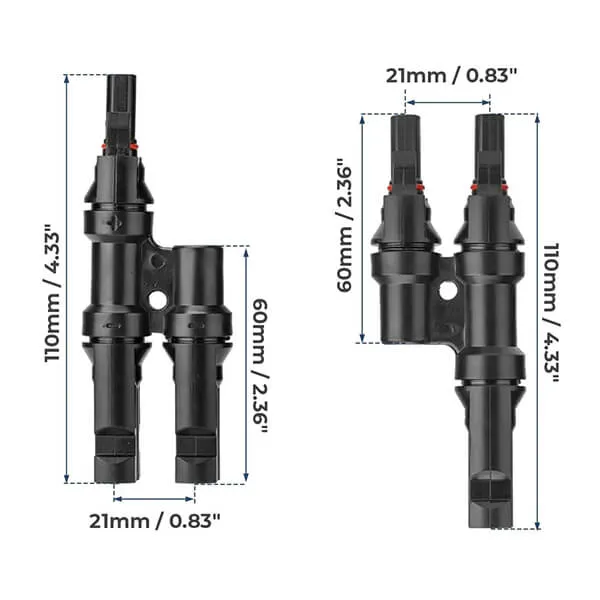

BougeRV Solar Branch Connectors Y Connector in Pair MMF FFM Parallel Connection (5 Pairs)

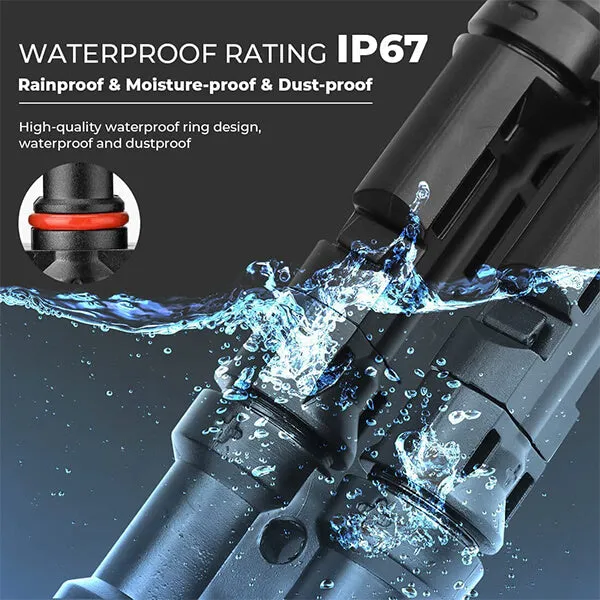

BougeRV Solar Branch Connectors Y Connector is the cost-efficient way to expand your solar system. The 5 pairs of parallel connectors (male & female) are a rain-proof, dust-proof and moisture proof design and include a waterproof ring that seals and protects the contraption from leaking.

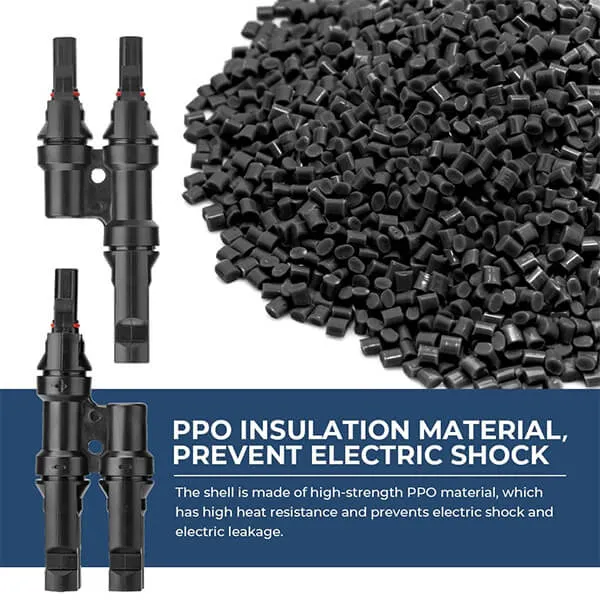

The certified PPO casing has high resistance and prevents electric shock and leakage, a much-needed connector for solar power systems.

Specifications:

Withstanding Voltage: 1000V DC(TUV), 600V(UL)

Contact Resistance: 1mΩ

Weight: 1.43 lb / 0.65 kg

Flame Class: UL94-V0 or UL94-5VA

Temperature: -40℃ until 194℃

Insulation Material: PC/PA

Uniting Force: 147.51 ft.

Contact Material: Copper, Silver Plated

What's in the Box:

2 x Pair of Branch Connectors

2 x MMF Solar Branch Connectors

2 x FFM Solar Branch Connectors
